- RS-232 I/O card
- EVOC Intelligent Technology Co., Ltd
RS-232 I/O card CPC-16COM seriesRS-485RS-422PCI
Add to favorites
Compare this product
Characteristics
- Bus
- RS-232, RS-485, RS-422
- Bus standard
- PCI
- Size
- 6U
- Other characteristics
- compact
Description

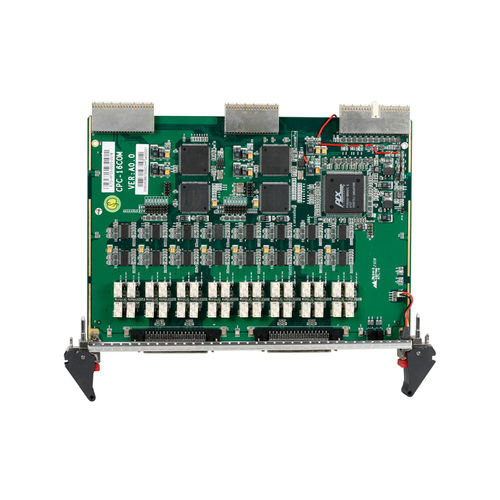

6U COMPACT PCI I/O BOARD 16 COM PORTS
CPC-16COM
6U standard CPCI bracket, 32bit, 33MHz CPCI bus, support hot-swappable
16*serial port RS-232/RS-422/RS-485 switched, speed up to 115200bps
Front I/O 2*DB68 port, support 8*serial port; support Rear I/O
Operating temperature: -5℃～55℃
Storage temperature: -45℃～85℃
Relative humidity: 5%～90%, non-condensing
Catalogs
CPC-16COM
1 Pages
