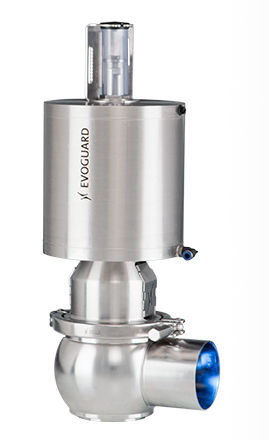

Seat valve Splugpneumaticfor chemical products
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- pneumatic
- Media
- for chemical products, for liquid food products and beverages
- Body
- seat, stainless steel
- Applications
- for the food industry, process, for hygienic applications, for the cosmetics industry
- Other characteristics
- with seal
- DN
Max.: 150 mm
(5.906 in)Min.: 25 mm
(0.984 in)- Pressure
Max.: 22.7 bar
(329.2 psi)Min.: 0 bar
(0 psi)
Description
To particularly suit the process conditions
- Valve disk with balancer:
Reduces pressure surges when closing in the direction of flow
The cone-shaped valve disk ensures a gentle transfer of the product
- Metal stop for the valve disk to protect the seal
- Two-piece threaded valve disk with
Defined space for the sealing ring
Easy assembly without risk of twisting
Seal resistant to seepage and rip-out
- Design of the shaft seal:
Wiping function protects against contamination ingress
