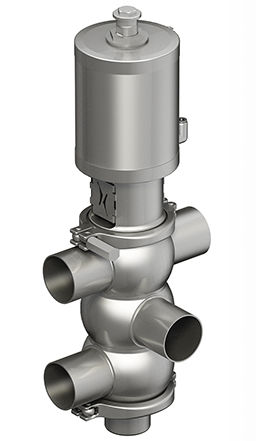

Plug valve SC pneumaticdistributiondiverter
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- pneumatic
- Function
- distribution, diverter, changeover
- Media
- for liquid food products and beverages
- Body
- weld, 1-piece, EPDM, fluoroelastomer
- Applications
- for the food industry, beverage, for pharmaceutical applications, hygienic, food, sanitary, sanitary, for dairy products, shaft
- Number of channels
- 3-way, 3/2-way, 2/3-way
- Associated function
- switching
- Other characteristics
- ISO, ANSI, DIN, actuated, with seal, pneumatically-operated, ATEX, with I/O link
- DN
Min.: 25 mm
(0.984 in)Max.: 150 mm
(5.906 in)- Pressure
Max.: 22.7 bar
(329.2 psi)
Description
Reliable flow direction control in a hygienic production process
- Two-part valve disc, screwed, with a defined space for the sealing ring for easy installation
- Seal resistant to seepage and ripout
- Shaft seal design:
Stripping function protects against contamination ingress
Geometry protects the seal against being torn out
Version SC
- Actuator allocation according to product pressure:
- Valve disk double-balanced
resistant to pressure blows up to min. 45 bar (652 psi)
avoidance of pressure surges during switching
- Housing PN 25 without dead space
one part, for welding – no additional connections (screw connection, flange, etc.) required in the pipeline
drainable- no sump in the upper housing
- Variable flow direction
Version SC2
- Cost-effective alternative - connection 0 to gully
