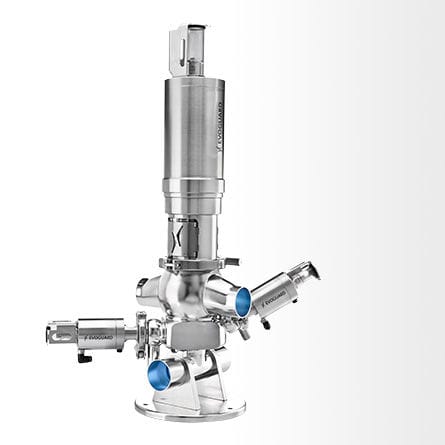

Aseptic valve MA

plugpneumaticmix-proof

Aseptic double seat valve MA Reliable separation in aseptic and sterile processes - Safety when lifting the bottom valve disk with additional locking of the top valve disk - Free cross-sectional areas in relation to the pipe diameter - Tilted rinsing valve: To protect the bellows For optimum cleaning of the safety area - Bellows with support: Reduced vibrations in the process Increased lifetime of the bellows - Connections for leakage drain/bellows monitoring - Actuator with integrated lift functions for: Fast cycle times and low air consumption Torsion-free lift motion of the valve disk Rotational decoupling between valve shaft and actuator - The option to arrange for the use of a temperature sensor permits the monitoring of the temperature directly in the housing
