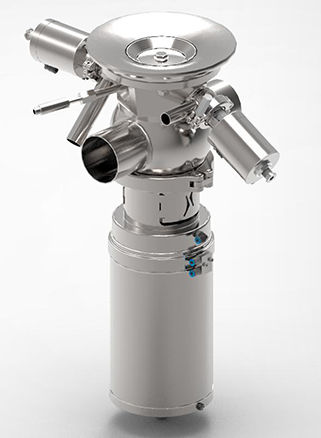

Tank bottom valve MTA

plugpneumaticshut-off

Aseptic tank outlet double seat valve MTA Direct connection to the tank without sump Metal bellows for hermetical sealing of the product room against the atmosphere One-piece housing, rotatable by 360° Independently working valve disks with their own sealing permit a reliable separation of incompatible media. The safety chamber between the valve disks is connected via flushing valves. Cleaning/sterilisation of the safety chamber is effected via the flushing valves or by actuating the upper or lower valve disk Free cross-sectional areas in the valve housing permit gentle product guidance Allocation of actuator with adjustment to product pressure Integrated lifting features of the actuator permit fast cycle times and low air consumption Sealing geometry optimised for all applications The option to arrange for the use of a temperature sensor permits the monitoring of the temperature directly in the housing
