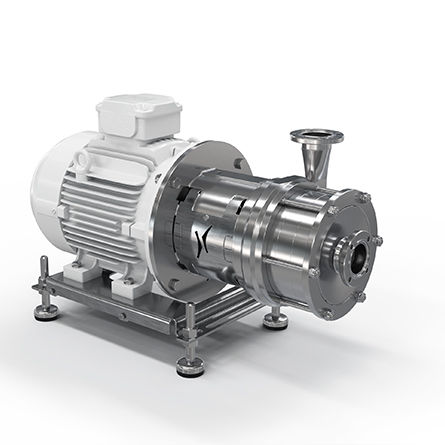

Pump for hygienic applications HMCP for food productswith electric motorradial
Add to favorites
Compare this product
Characteristics
- Fluid
- for food products
- Operation
- with electric motor
- Technology
- radial
- Mobility
- stationary
- Domain
- for the food and beverage industry, for hygienic applications
- Applications
- transfer
- Material
- stainless steel
- Other characteristics
- multi-stage
- Flow
Max.: 76 m³/h
(2,683.91467 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 25 bar
(362.594 psi)Min.: 0 bar
(0 psi)- Head
Max.: 150 m
(492'01" )Min.: 0 m
(0'00" )- Fluid temperature
95 °C
(203 °F)- Input diameter
100 mm
(3.937 in)- Output diameter
80 mm
(3.15 in)
Description
Hygienic centrifugal pump HMCP – multistage, non self-priming
High delivery headhygienic, efficient and low-noise
Available with 2 up to 5 impeller stages
Design according to the latest EHEDG guidelines
Optimized hydraulic system due to CFD calculation
Low-noise and high efficiency
No enclosed room or parts, fast detection of sealing failure
Identical mechanical shaft seal as from the H1CP
Manufactured to the latest production processes, no castings in the product-room
