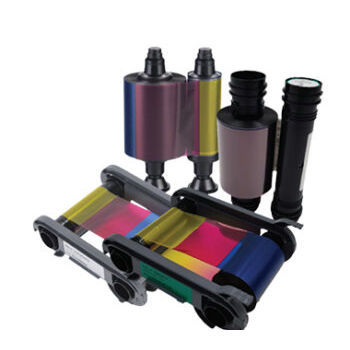

Resin thermal transfer ribbon 1/2 YMCKO series

for plastic card printers

Evolis High Trust® half panel color ribbons are suitable for identification cards featuring a color ID photograph and some black resin printings (for text, logo or barcode). These ribbons have the same specifications as the standard full panel YMCKO color ribbon but the Yellow, Magenta and Cyan panels are half the length as described below: An advantageous cost per card regarding to the standard YMCKO color ribbon (40% less) when you personalize in color just a part of a card. Higher printing autonomy than the standard YMCKO color ribbon for less operator intervention. All ribbons are formulated to produce sharp, bright images and clear text. The protective varnish allows a better lifespan of your prints. Tested and validated by Evolis R&D and Quality departments, these consumables bring you printing quality and reliability. • For dye-sublimation and thermal transfer technologies • For single side color printing • Ribbon in PET with thin layer of specialized coatings. Very low concentration of colorant insoluble in water • 5 panels - Y, M, C - Yellow, Magenta, Cyan : 49 mm (1.93’’) length - K, O - Black, Overlay : 98 mm (3.86’’) length • The color-printed area length must not exceed 35 mm (1.37’’) and 54 mm (2.12’’) for the height, but can be placed anywhere on the card • Overlay thickness: 1.1 microns • Printing lifespan: up to 3 years • Compatible with PVC or composite cards • Printing process: diffusion temperature above 50°C / 122°F.
