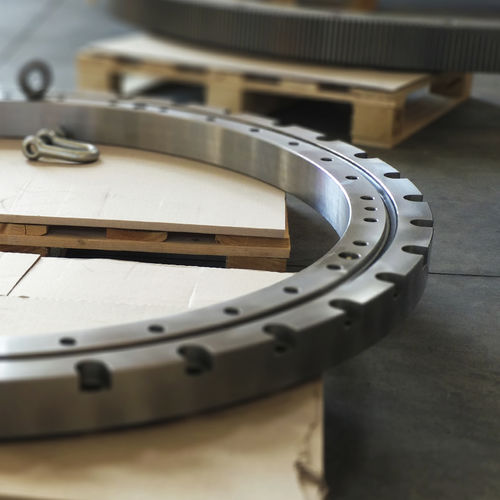

Slewing ring without teeth

ball bearingrollersingle-row

The slewing ring has to be adopted when, in a machinery or in mechanical plant, a structural part must rotate opposed to another part, along a fixed axis, ensuring the axial and radial link between the two parts. The slewing ring, with the maximum stiffness offered by its design, must bear and transmit the operative loads of the structure it is linked to, and also it must guarantee the required motion precision, the respect of operational parameters, and the required lifetime. It is evident how the slewing ring is a fundamental component and its choice must be done according to specific technical studies. EVOLMEC technical staff can assist your Company in the choice of the suitable slewing ring. Application fields: wind turbines, food industry plants, mining industry, heavy machinery, offshore industry, transport industry, radars positioning systems. TECHNICAL SPECIFICATIONS Available alternatives Please contact our engineering department for further explanations Dimensional accuracy According to drawing Running accuracy According to drawing Clearance / Preload Standard or special Material of the rings C45 ( UNI 7845 – WNr. 1.191 ) / 42CrMo4 ( UNI 7845 – WNr. 1.7225 )
