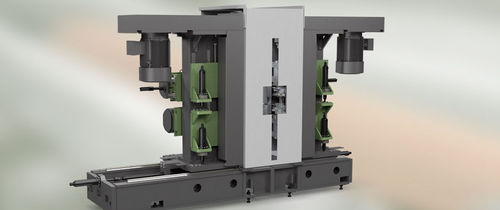

Profiling cutting machine FR16

rotary bladefor woodservo-driven

The Profiling and saw unit FR16 does: 1. Per side the profiling of one side board with vertically arranged profiling heads. The profiling heads may be fitted for a variable chip length up to 30 mm with 2 or 4 knives on the tool circumference. For the production of pellet chips and for lumber without fiber tear out and extraordinary long tool usage times the P-System heads, developed together with LEUCO, will be used. 2. Per side up to 2 side boards may be sawn off from a log or 2-sided cant with the double arbor circular saw module. In the standard version, the inner side board thickness is fix set, using spacer rings. For a flexible thickness of the inner side board an optional saw arbor with telescopic inner saw arbor is available. The horizontal and vertical positioning of profiling heads and saw blades is done by fast and high precision servo-hydraulic setworks. Tool change access by walk-in moveable change platform.
