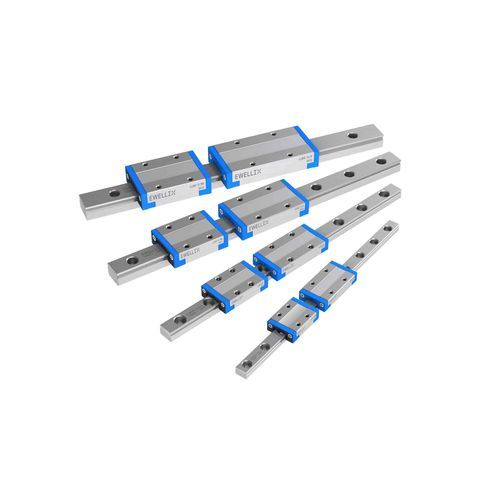

Ball bearing linear guide LLS17 mmcompactprofiled rail
Add to favorites
Compare this product
Characteristics
- Technology
- ball bearing
- Range
- 17 mm
- Other characteristics
- compact, profiled rail, miniature
- Rail length
Max.: 2,000 mm
(78.74 in)Min.: 1,000 mm
(39.37 in)- Rail width
Max.: 60 mm
(2.36 in)Min.: 17 mm
(0.67 in)- Load
Max.: 12,500 N
Min.: 915 N
- Speed
5 m/s
(16.4 ft/s)- Acceleration
140 m/s²
(459.3 ft/s²)- Precision
7 µm
- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
• Long service life, virtually maintenance-free
• Smooth running with low friction, best in class
• Good availability and shorter time to market
Features
• Factory pre-lubricated products with lube reservoir
• Unique low friction low noise ball retention
• Zero Rail Concept with interchangeable blocks on rails
Miniature profile rail guides are made for applications requiring compact, high running accuracy, long service life and low noise. Ewellix LLS systems offer extremely smooth running behaviour. The robust ball retention system avoids surprises during mounting. The products are ready to install while pre-lubricated with a lubrication reservoir for long service life. Rails and carriages (blocks) both have two reference sides for easy mounting. Please contact us for more information about our linear guide product range!
