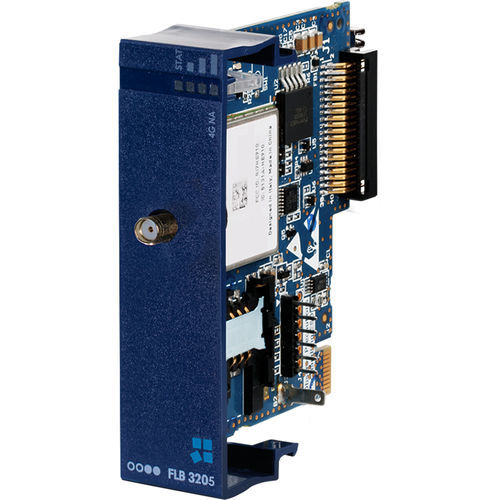

PCI Express network card FLB3205_00

internet3G4G

This Flexy extension card increase the connectivity capability of the Ewon Flexy with a LTE (4G) modem for North America. Many field-based applications do not have access to a wired Internet connection, instead requiring cellular connectivity. Using a 4G cellular connection provides the advantages of innovation and cutting edge technology and can sometimes be the only cellular connectivity in a remote area. The 4G LTE Flexy extension card addresses these requests while allowing an Ewon Flexy to connect to the Internet. For remote access requirements, a simple SIM card with data plan is all that is needed to connect to the Talk2M cloud-based solution. Similarly for SCADA-like applications, secure remote VPN connectivity can also benefit from this simple SIM card without the burden of provisioning a fixed IP address on the remote site. It is compatible with the Ewon Flexy 10x series, 20x series and 205. Frequencies - AT&T compliant 4G: B2(1900),B4(AWS1700), B5(850),B12/B13(700) MHz 3G: B2(1900),B5(850) MHz Automatic fallback to 3G Antenna Connector - SMA-F Female Antenna - Not included Operating temperature - -25 °C to +60°C Marking - cURus, FCC.
