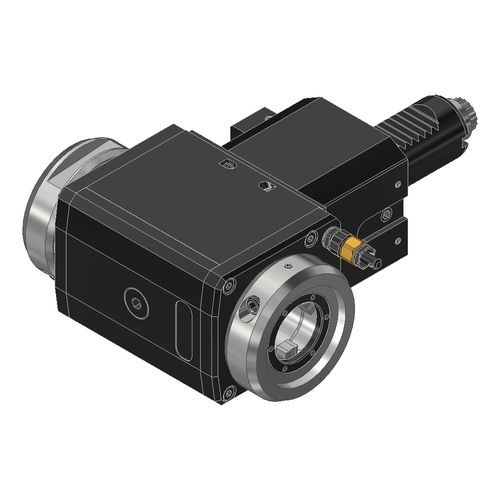

VDI tool holder 60.30VX3LDCTXRL

Weldoncolletmilling

With the patented quick-change system EWS.Varia VX, you perform the tool change faster than your competitors. In addition, your driven tool adapts to your requirements in the future. Due to the modular interface, for each machining process, the ideal tool clamping can be selected. • Tool change in less than 20 seconds • One-hand operation • Mechanically loaded tool ejection • Transverse force-free clamping of inserts • Safe torque transmission • Large selection of adapters (collet, Weldon, milling arbor, hydraulic expansion, shrinking) • Tightening torque of 6 Nm must be observed! • VDI shank double toothed. • Tool holder can be rotated 180°. • Note: Rotatability may be restricted by alignment systems (e.g. Trifix). The latest series of our tool systems are equipped with polygonal shaft hub connections. Compared to tool holders with key connections, there are clear technological advantages: • Reduced vibrations of the tool spindle • Significantly increased power transmission • Less gear backlash EWS.Butterfly-Seal - sealing technology in a class of its own • Speed-related lift-off function of the sealing element • No friction-induced running-in of the spindle • Reduced mold heating by up to 50% • Effective protection against cooling emulsion and dirt particles • Lower repair costs
