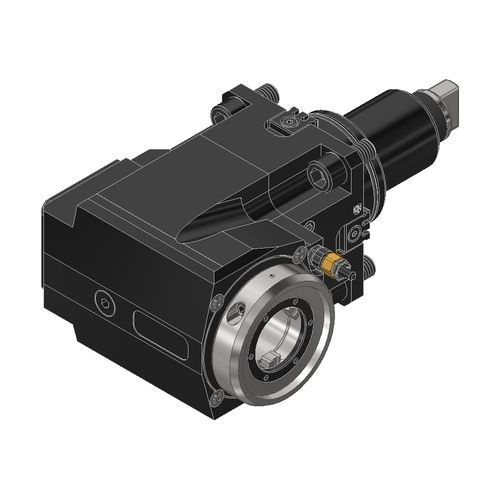

BMT tool holder 60.65VX41809PFIKDGLX100

Weldoncolletmilling

With the patented quick-change system EWS.Varia VX, you perform the tool change faster than your competitors. In addition, your driven tool adapts to your requirements in the future. Due to the modular interface, for each machining process, the ideal tool clamping can be selected. • Tool change in less than 20 seconds • One-hand operation • Mechanically loaded tool ejection • Transverse force-free clamping of inserts • Safe torque transmission • Large selection of adapters (collet, Weldon, milling arbor, hydraulic expansion, shrinking) • Tightening torque of 6 Nm must be observed! • Ceramic based sealing elements • 0 - 70 bar coolant pressure • Dry running capability without restrictions • Speeds up to 12,000/min • Up to 60% reduced heat generation • Long service life - low maintenance costs • Seal kit for the latest generation of internal coolant supply systems The latest series of our tool systems are equipped with polygonal shaft hub connections. Compared to tool holders with key connections, there are clear technological advantages: • Reduced vibrations of the tool spindle • Significantly increased power transmission • Less gear backlash
