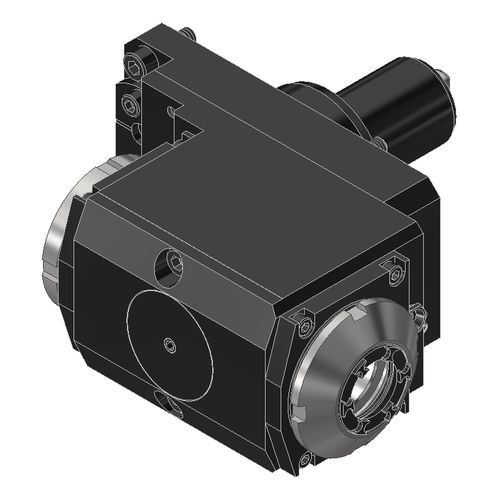

BMT tool holder 80.6832DQSMGSPBMTIMcolletmillingdrilling
Add to favorites
Compare this product
Characteristics
- Machine mount
- BMT
- Clamping method
- collet
- Application
- drilling, milling
- Other characteristics
- radial, multi-spindle
- Rotational speed
6,000 rpm
(37,699 rad.min-1)
Description
• Clamping range Ø3-20
• For collet 320 470E
• When tightening the clamping nut, it is essential to counterhold the tool spindle.
• Failure to observe the counter-hold can result in damage to the gearbox or drive coupling.
• Maximum tightening torque: 120 Nm
