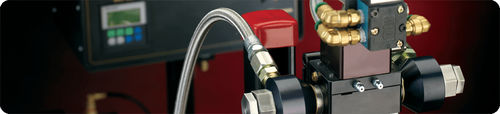

Dispensing valve S-900 series

EXACT offers an extensive line of dispense valves which have been developed to address a wide variety of applications. Most of the valves incorporate a 90° shut off design and utilize a pneumatically actuated plunger. MODEL S-900 & S-901 SERIES For small dot, bead, and fill applications, EXACT offers the S-900 and S-901 series valves, which feature compact design and minimal internal ported volume. These valves can be used with both single and plural component materials. The small size of the S-901 makes it ideal for hand held operation, either by itself or with the optional S-364 Triggerhandle. Some additional features of the S-900 & S-901 valves include: - Self compensating seat design for long lasting performance. - Stroke adjust for precise flow control. - Wetted parts constructed of aluminum, stainless steel, ethylene propylene. Other materials available. MODEL S-905 THRU S-910 SERIES For applicatons requiring higher flow rates (up to 20 gpm), the S-905 through S-910 series valves are offered. Typically used in batching operations, these valves offer such features as: Flush shut off design Recirculating porting Solvent purge check port Right angle inlet porting for high density mounting configurations A wide range of peripheral items are available to enhance the operation of our valves, including electro/pneumatic controls, stands, and other control and fixturing devices. Our engineers are always available to assist you in choosing the right valve for your application.
