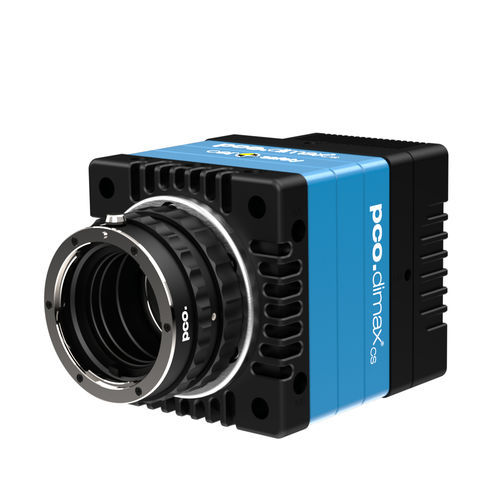

High-speed camera pco.dimax cs1

for car safetydigitalspark optical emission

The pco.dimax cs1 camera provides excellent light sensitivity and outstanding image quality ideal for precise analysis and measurements. This high-speed camera offers fast frame rates of up to 3086 fps at a high resolution of 1296 x 1024 pixels. Featuring intuitive control software, the pco.dimax cs1 enables easy playback and export of recorded slow motion video sequences. Its multiple lens mounts (including electronic lens control), HD-SDI video output and automatic image calibration make the pco.dimax cs1 camera a versatile and powerful solution for demanding car safety applications. The pco.dimax cs high-speed camera series are specifically designed for harsh and demanding applications, inter alia, vehicle crash tests or microscopy experiments. With a compact, lightweight and ruggedized design, the pco.dimax cs cameras can be mounted in a multitude of positions for both onboard or off-board use. Resolution 1296 x 1024 pixels Pixel size 11.0 x 11.0µm Peak quantum efficiency 50 Dynamic range A/D 12 bit Readout noise 22 e- rms Frame rate 3086 fps Exposure time range 1.5 µs - 40 ms Region of interest (ROI) 24 x 4 pixels (centered) Optical input F-mount, C-mount Data interface GigE
