Intensified camera system pco.dicam C4

industrialdigitaldetection

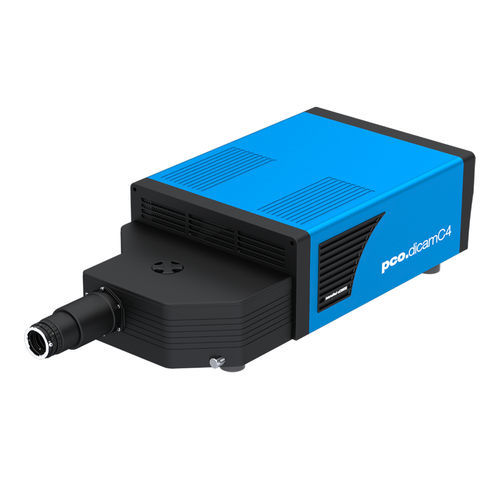

Excelitas pco.dicam C4 is a fully integrated four-channel, high resolution intensified camera. Featuring an advanced optical beam splitter, the pco.dicam C4 equally distributes incident light from a single optical input to four 25 mm image intensifiers enabling single photon detection with nanosecond time resolution. This ultra-fast four-channel camera offers unique intensified 16-bit sCMOS capabilities with an advanced tandem lens system to ensure high transmission efficiency and no artifacts for outstanding image quality. Our four-channel pco.dicam C4 intensified camera is uniquely designed with an sCMOS sensor integrated with each detector to allow extremely high burst frame repetition rates for high-speed imaging. Featuring a 40G fiber optic data interface (Camera Link HS FOL), the pco.dicam C4 guarantees uncompressed and robust data transfer up to 3.4 GByte/s via optical fiber over virtually any distance. Variant High resolution Intensifier diameter 25 mm Photocathode material S20, GaAs, GaAsP Phosphor screen material P43 or P46 Resolution 2048 x 2048 pixels Frame rate at full resolution 424 fps Exposure time Typ. 4 ns Mount F-mount Canon EF mount* Final test sheet Included
