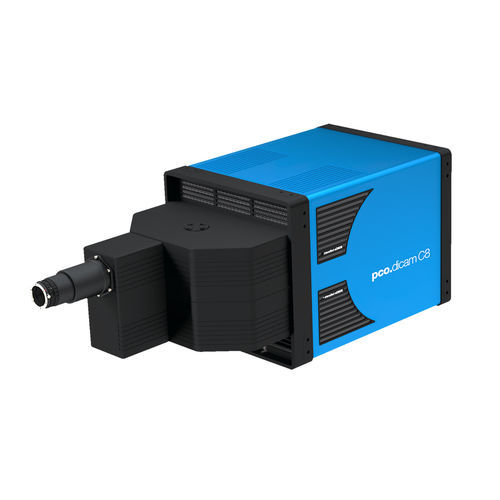

Intensified camera system pco.dicam C8 LT

industrialdigitalmeasuring

Built on our pco.dicam C8 platform, pco.dicam C8 LT is a budget-friendly alternative to our standard camera and UHS models most suitable for routine intensified imaging applications. This fully integrated eight-channel intensified sCMOS camera features an advanced optical beam splitter that enables equal distribution of incident light from a single optical input to eight 18 mm high-quality image intensifiers each capable of detecting single photons with 51 ns shortest gating and up to 120 fps at full 2.3 MPixel resolution. With extremely high burst frame repetition rates, the pco.dicam C8 LT can record sequences of 8 ultra-fast images in 408 ns or 16 images in 960 ns ns while ensuring maximum image quality. Featuring 80G fiber optic data interface (Camera Link HS), the C8 LT guarantees uncompressed and secure data transfer, while ensuring maximum data integrity via its Forward Error Correction algorithms. Variant No export restrictions Intensifier diameter 18 mm Photocathode material S20 Phosphor screen material P43 or P46 Resolution 1504 x 1504 pixels Frame rate at full resolution 120 fps Exposure time 51 ns Mount F-mount Final test sheet On request
