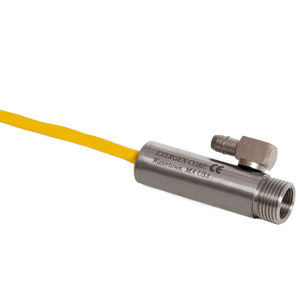

Non-contact temperature sensor ACEthermocouplethreadedanalog
Add to favorites
Compare this product
Characteristics
- Technology
- thermocouple
- Mounting
- threaded
- Output
- UART, analog
- Protection level
- IP65
- Applications
- air, for OEM
- Other characteristics
- small, non-contact, flexible
- Temperature
Min.: 0 °C
(32 °F)Max.: 250 °C
(482 °F)- Probe diameter
9 mm
(0.4 in)- Spectral range
Min.: 5.5 µm
Max.: 16 µm
Description
• Flexible and customizable
• Small size, easy installment and use
• High sensitvity
• Non-contact temperature sensor
• Small size sensor head (18 mm)
• Output 0-5V, 0-10V, 4-20mA, UART/RS232
• Repeatability error < 0,1°C (0.18°F)
• Interchangeability error ± 0,3°C (0.54°F)
• Resolution 0,005°C (0.01°F)
• Air purge jacket as option
