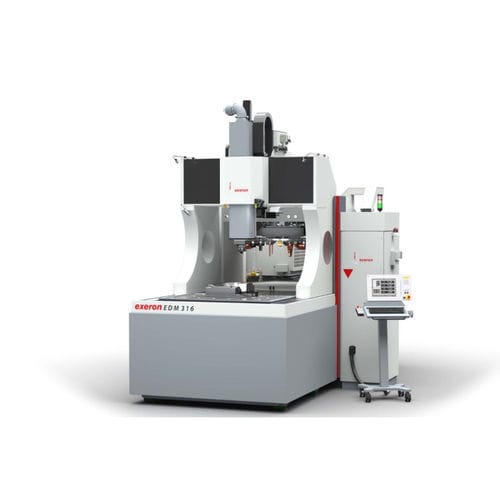

Die sinking EDM EDM 316 high-accuracyflexibleCNC
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, high-accuracy, flexible
- X travel
1,500 mm
(59.06 in)- Y travel
1,180 mm
(46.46 in)- Z travel
800 mm
(31.5 in)
Description
Highest stability due to FEM-optimised, undivided machine base in hybrid construction
Integrated dielectric system with automatic cooling for constant operating conditions (optional: backwashing filter)
Digital AC servo direct drives and glass scales in the centre of mass for highest travel
and control dynamics
Lowerable tank, driveable while filled for free access to the workpiece and short filling
and emptying times
Fully simultaneous CNC path control MF 30 on PC basis with Windows operating system
High-power generator technology exopuls+ with Digisparc-optimised erosion process
Optimum ratio of travel paths and installation space
Connection to various automation systems possible
Catalogs
EDM Line General overview
24 Pages
EDM
12 Pages
