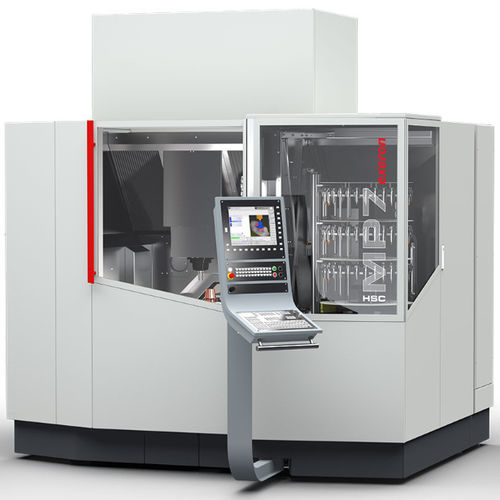

5-axis CNC milling machine HSC MP7/5verticalHSK-E40HSK-E50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40, HSK-E50
- Number of tool stations
- 40 tools, 60 tools, 30 tools, 90 tools
- Applications
- for medical applications
- Other characteristics
- high-performance, high-precision, high-rigidity, with linear motor, with pallet changer
- X travel
640 mm
(25.2 in)- Y travel
250 mm
(9.84 in)- Z travel
400 mm
(15.75 in)- Rotational speed
42,000 rpm
(263,894 rad.min-1)- Power
10 kW, 13.5 kW
(13.6 hp, 18.35 hp)- Work feed X-axis
40 m/min
- Work feed Y-axis
40 m/min
- Work feed Z-axis
40 m/min
- Table load capacity
60 kg
(132 lb)- Overall length
2,400 mm
(94.5 in)- Overall width
2,370 mm
(93.3 in)- Overall height
3,000 mm
(118.1 in)
