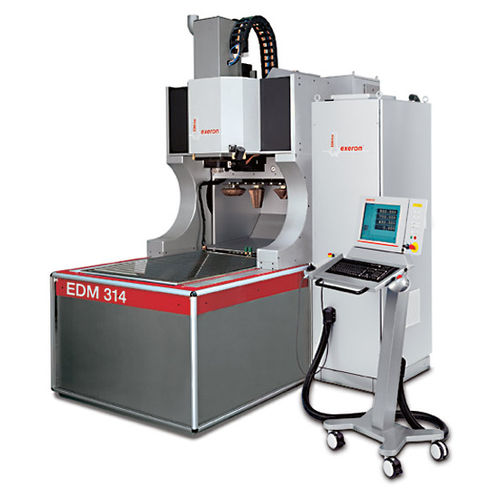

Die sinking EDM EDM 314 CNChigh-accuracyflexible
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- CNC, high-accuracy, flexible
- X travel
900 mm
(35.43 in)- Y travel
700 mm
(27.56 in)- Z travel
450 mm
(17.72 in)
Description
Highest stability due to FEM-optimised, undivided machine base in hybrid construction
Integrated dielectric system with automatic cooling for constant operating conditions
Digital AC servo direct drives and glass scales in the centre of mass for highest travel
and control dynamics
Lowerable tank, driveable while filled for free access to the workpiece and short filling
and emptying times
Fully simultaneous CNC path control MF 30 on PC basis with Windows operating system
High-power generator technology exopuls+ with Digisparc-optimised erosion process
Connection to various automation systems possible
