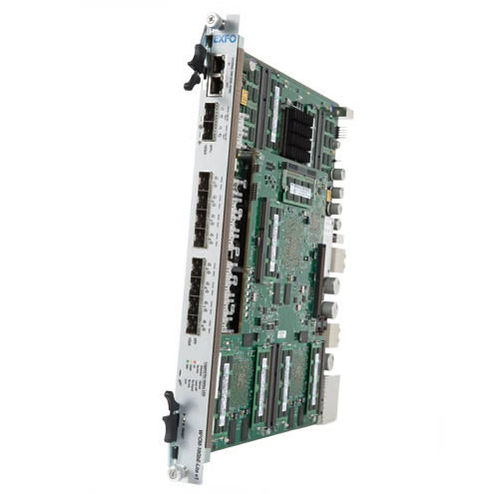

FPGA network interface card W²CM series

10 Gigabit Ethernet

Offers high-performance, high-capacity control-plane and user-plane testing of LTE, VoIP and IMS networks. Realistic Wireless and Wireline Converged Testing The W2CM-10GbE is designed to meet the challenging needs of testing fixed-mobile converged networks and services like wireless (2G/3G/LTE), IMS, VoLTE and VoIP. It is specially designed for signaling and user-plane testing of network elements such as the P-GW, S-GW, eNodeB, SBC, CSCFs, BGF, HSS and IMS application servers. It utilizes advanced CPU technology to deliver the high performance required for testing large scale networks, and it offers state-of-the-art FPGA technology for generating and analyzing, at line rate, user-plane sessions such as voice, video and data. Unmatched Signaling and Media Capacity and Performance With EXFOs QualityAssurer, the W2CM-10GbE module emulates tens of millions of subscribers, generating real-world traffic toward LTE, IMS and VoIP networks. It emulates subscribers initiating voice/video calls, browsing websites, downloading files, checking e-mails, as well as streaming audio and video content. Using custom-designed FPGAs, the W2CM-10GbE module provides accurate time-based statistics, with a 10 ns time-stamp resolution, to gauge the quality of service provided to subscribers.
