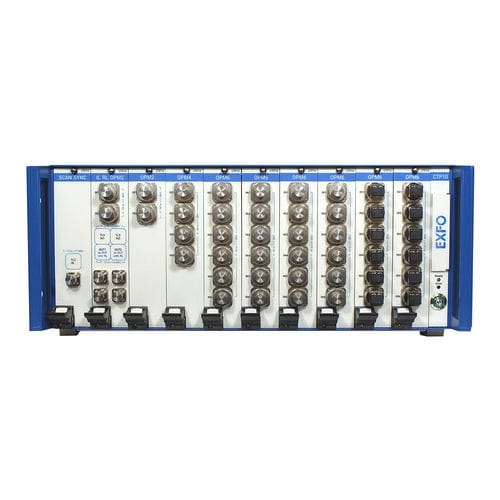

Network tester CTP10

integrated circuit

The CTP10 is a modular measurement platform for efficient 24/7 testing of passive components. It lets you perform single-sweep insertion loss and return loss measurements with an unprecedented dynamic range, speed and resolution. The CTP10 is the ideal instrument for the characterization of large port number components used in DWDM networks and photonic integrated circuit (PIC) applications. Next-gen platform and modules The CTP10 platform hosts up to 10 hot-swappable modules. It has an embedded operating system for handling and processing large amounts of data. Unparalleled performance The CTP10 boasts the fastest swept insertion loss and return loss measurements on the market. Full dynamic range characterization can be performed in a single sweep, drastically increasing throughput. The CTP10 platform is also compatible with tunable lasers sweep speeds higher than 500 nm/s. Powerful intuitive GUI Its embedded software offers a powerful and intuitive GUI displayable on two screens: one for the display of the installed modules and external lasers, and one for the display and analysis of measurement results. Resources
