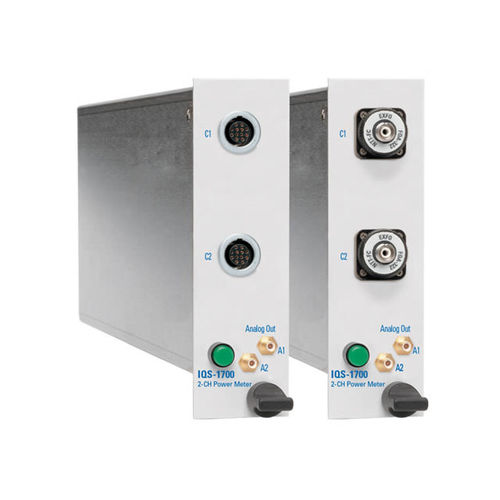

Optical power meter IQS-1700

An optical power meter that meets all your power measurement requirements Designed for the IQS-600 Integrated Qualification System, the IQS-1700 optical power meter and the OHS-1700 optical head deliver speed, accuracy and flexibility in a platform-based solution. Easy-to-use interface The flexible graphical user interface (GUI) developed by EXFO allows easy control of the power meter settings. Get instant access to software buttons, such as those used to launch an acquisition, perform a min/max signal tracking or activate the Graph mode. Graph mode The Graph mode provides user-configurable measurement displays. Up to four curves can be displayed at once. When operating in Continuous mode, the graph displays the measurements in real time. High-speed acquisition with an extended range The IQS-1700’s unique, patented design saves time, cuts costs and significantly enhances throughput with its Continuous-mode peak-acquisition speed of 5208 acquisitions per second. Its 80 dB range and 300 μs stabilization time allows you to simultaneously measure high and low signals on one or two channels. Test more components with a single, small-footprint module, thanks to the IQS-1700 High-Performance Power Meter’s dual-channel capability.
