Spray nozzle 63-530 / C

paintflat spraytungsten carbide

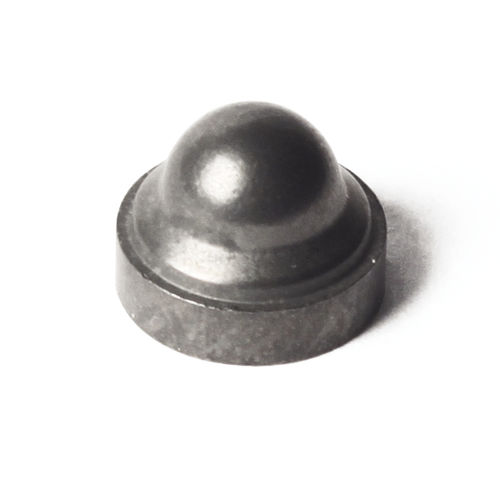

The C Series of tungsten carbide inserts, with its larger head, is specifically designed for Airless applications with higher flow rates. The internal diameter ranges from 1.50 mm to 4.50 mm. The 'big' head C insert is available in sizes from 0.031 inch (3.42 L/min at 100 Bar with water) to 0.099 inch (34 L/min at 100 Bar with water) and from 20° to 130°. With our engineering capabilities, we can also assist you in the integration of the carbide inserts into your nozzle body made out of stainless steel or other materials. Main dimensions are : 1. Base diameter: 7 mm 2. Head radius: 2.4/3.0 mm 3. Overall height: 5.3 mm
