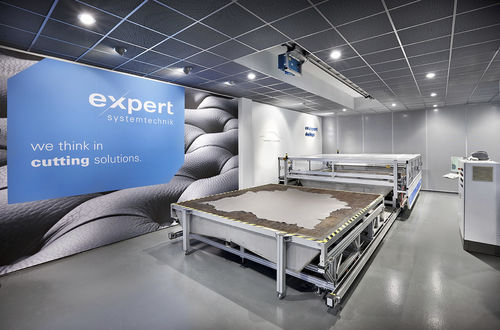

Leather cutting machine cut expert doublejet

pure water-jetCNCmulti-head

cut expert doublejet - Multi-functional CAM cutting system using pure-waterjet technology with 2 cutting bridges and 2 cutting heads for the 2D cutting • Field of application: cutting of leather and other flat, flexible, non-metallic materials • High-performance cutter with 2 fixed tables and 2 moveable cutting bridges (covering entire cutting area) • For a cutting capacity of 120 – 240 leather hides/8-h shift, depending on the type and complexity of the patterns • Cutting area in various sizes: S, M, L and XL customised sizes possible if required • Laser projection system for displaying the leather hide outline Strengths, added value • Suitable for large volumes and high capacities • Extremely short cutting times thanks to high cutting speed and 2 simultaneously operated cutting bridges • High cutting precision • Very low water consumption of approx. 0.2 l/min • cuts all geometries like holes, complicated contours, etc. • Easily extendible for coping with increased capacity requirements thanks to the modular design Technical details Cutter: • Highly dynamic servo drives for cutting speed of up to 70 m/min • Acceleration up to 5 m/s² • Repeatability +/- 0.2 mm • Cutting tool: waterjet nozzle with diameter of 0.08 up to 0.25 mm • 2 cutting bridges, each with 1 cutting head for alternating operation on both cutting areas • 2 cutting tables, with 360-degree access to the centre of the table covered with steel honeycomb structure (integrated splashback protection) • Soundproof enclosure of the cutting zone • CE compliant Hardware: • expert-PC with latest version of Microsoft Windows • Industrial barcode reader Software: • Licence for 1 cutter • PC-based NC control software
