Conveyor lift system DBHfor industrial use
Add to favorites
Compare this product
Characteristics
- Product applications
- conveyor
- Application domain
- for industrial use
- Load limit
Max.: 900 kg
(1,984 lb)Min.: 200 kg
(441 lb)- Lifting height
Max.: 10,000 mm
(393.7 in)Min.: 800 mm
(31.5 in)
Description

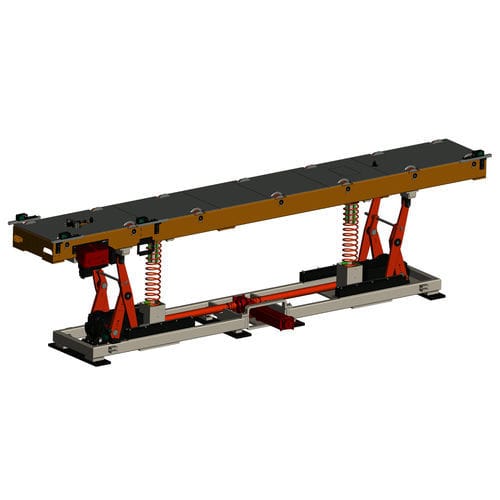

The EXPERT-TÜNKERS Dual-Box-Lifter is a low-profile rollerbed lifter with integrated spring suspension system. The low-profile and overall compact design leads to minimum space requirements and has no interfering edges for a perfect 360° robot accessibility. Additionally the Dual-Box-Lifter has an integrated energy storage system operated by two spiral springs. Their stored potential energy reduces the required energy by up to 30% per full cycle.
