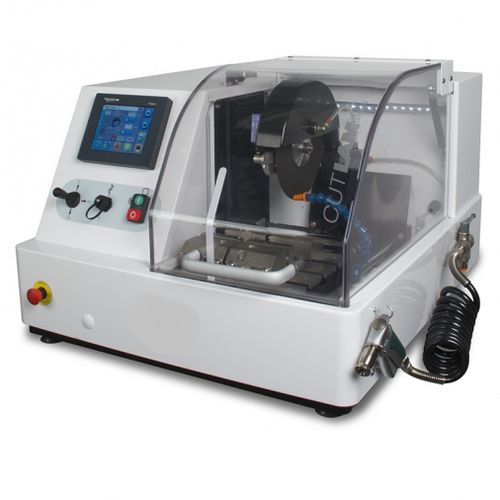

Circular saw Labcut® Micro 3.0

for metalsfor compositesautomatic

The Extec Labcut® Micro 3.0 Variable Speed Automatic Precision Saw featuring automatic programmable movement along the Y and Z axes and optional manual positioning movement along the X axis is designed for high precision cuts for even the most complex applications. The EZ-TSK Touch Screen Keypad interface and joystick control all of the unit’s functions in any of the 3 cutting modes: manual, semi-automatic or fully automatic. Up to 300 cutting programs can be stored in memory. The speed range and cutting chamber capacity enables use in many applications with a variety of cutting wheels up to 9 inches (230mm) diameter. The cutting motion can be continuous or pulsed. The cutting feed is controlled electronically with settings for the wheel speed, Z height adjustment and feed into the wheel along the Y axis. Intelligent feed control allows the saw to automatically control the feed to account for wheel speed and work piece resistance. The cutting chamber is illuminated by an LED. An intuitive display of cutting time shows the expected time to make the cut based on the parameters set. The work piece is held by precision vises. A robust metal interior and exterior construction ensure stable and vibration free cutting.
