Visualization software ET-View

data loggerfor gas detectorsWindows

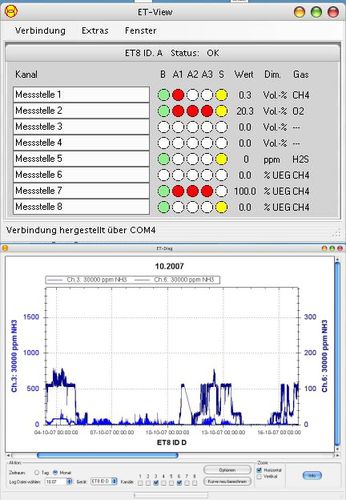

Software package for Personal Computers consisting of ET-View - Online-Visualisation for in maximum 16 control units; Data logging on PC-harddisc ET-Diag - History diagrams of logged data Visualisation: Individual text to identify each measuring point (channel) Indications for operation, alarms, transmitter fault Measuring values with physical unit and gas Indications for ET-8D-status operation, maintenance, fault and data transmission Cycle time for actualization configurable Visualisation of all connected control units simultaneously Data logging: Capacity depends on hard disc only Recorded data includes time stamp and all of the visualized data Data loop through: Data transmission to external periphery, e. g. PLC, possible Diagram: x-y-diagrams (up to two y-axis, scalable) Basic time intervals: day or month Zoom functions Options: Copy, save and print of the displayed diagram Control units: Up to 16 control units ET-8D or ET-4D2 System requirements: Personal Computer (Operating System): Microsoft Windows 2000/XP/Vista™/Windows 7 Communication (Control Unit PC): RS 485 interface (or RS 485-adapter for RS232- or USB-ports) Control units: Suitable software version (ask ExTox for information) Configuration of RS 485-address on PCB of the control unit (see operating manual) Transmission parameters: 9600 Baud, 8 Data bits, 1 Stop bit, no parity Cabling: twisted pair, shielded
