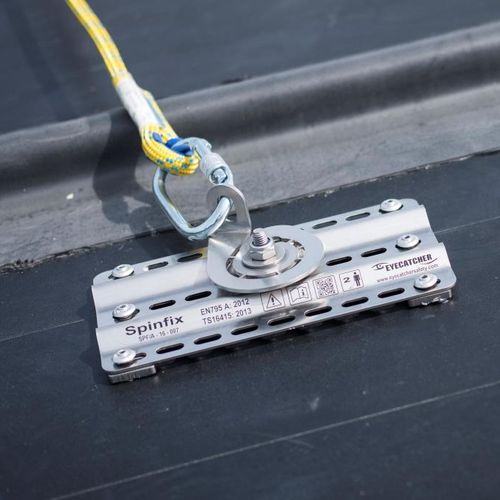

Stainless steel fall arrest anchor SPINFIX

for roof

Height Safety on metal roofing by means of a very pleasing and fast to install roof safety anchor, that is the Spinfix. This roof safety anchor is also available as a Life Line System. For fall protection on metal roofs the Spinfix roof anchor is ideal. This Roof Anchor is suitable for corrugated metal roofs and also for flat roofs in combination with filler strips. Together with the Steelfix it covers the excisting and different types of metal roofing available on the market. Due to it’s compact size it has low visibility. The roof safety anchor is installed with six bulb-tite rivets directly onto the metal roofing. The innovative anchor eye rotates 360 degrees and always points into the direction of the user, thereby focusing on it’s safety. In case of a fall from height, the innovative internal energy absorber within the anchor eye reduces the fall energy dramatically. Working safe at height on metal roofs has never been easier. The smart design of the Spinfix roof safety anchor ensures that the materials absorb the fall energy. As a result, the impact to the user and roofing are strongly reduced. This way both the user and the metal roofing are being protected against too much impact force. All thanks to the innovative design of the Spinfix roof safety anchor. SPECIFICATIONS ▪ Stainless steel baseplate ▪ spinfix-valbeveiliging-metaaldak-ankerpuntRotating Stainless anchor eye ▪ Innovative and internal energy absorber ▪ Including 6 bulb-tite rivets and bituminous tape ▪ Range 90 – 200 mm (3,54 – 7,87 inch) ▪ Aesthetically pleasing ▪ Very fast to install ▪ Min. 0,42mm steel(0,016 inch)/0,7mm (0,027 inch) Alu ▪ Tested and certified by DEKRA EXAM GmbH
