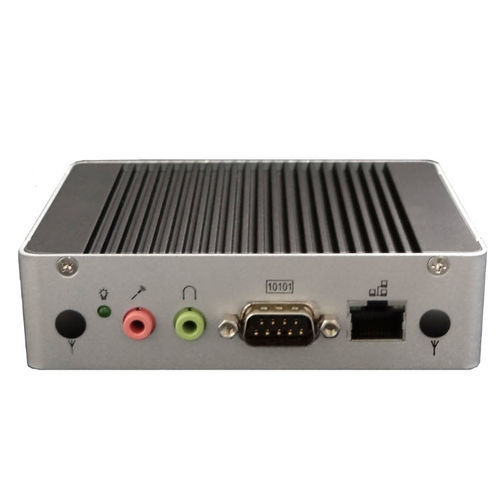

Embedded PC FX5206DM&P Vortex86DXVGADDR2 SDRAM
Add to favorites
Compare this product
Characteristics
- Configuration
- embedded
- Processor
- DM&P Vortex86DX
- Ports
- VGA, DDR2 SDRAM, USB
- Operating system
- Linux, Windows
- Other characteristics
- fanless, wireless
Description
Special Features:
Fanless, Low Power, DinRail Mount & Supporting Mini-Card for wireless modules
Applications:
Thin Client、Home Automation、Transportation
Optional Accessories:
FX5311K1 - VESA Mount (75 x75 mm Only)
AK-1006-Half size PCIe Mini Card Adapter Kit
AK-1009-DinRail Mount Kit
FX5407K3 - LCD VESA Mount Kit
Function Items - Specifications
CPU Board - Vortex86DX2
Processor - DMP Vortex86DX2
DRAM - 1GB DDR2 (On-Board )
DRAM Socket - -
I/O Connector -
KB/Mouse - Yes
Serial - RS232/422/485 *1
Parallel - -
USB - 3 (2.0)
LAN - 1 (Giga LAN)
Display - VGA
Dual Display - -
Audio - Yes
GPIO - -
BUS I/F - PCIe Mini-Card Slot *1
Storage Bay -
CFast Socket - Yes
HDD Space - -
Power Reguired -
Input Voltage - DC 12~24V
Rated Current - 25VA Max
Operation System - Windows XPe / CE, and Linux
Operation Temperature - 0°C to 50°C (32℉ to 122℉)
Compliances - CE / FCC / RoHS
Dimension (W x D x H) - 115 x 95 x 30.2 mm
