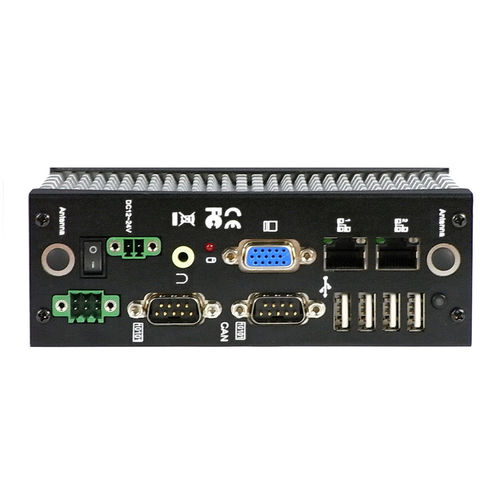

Embedded PC FX5326

DIN railIntel® Atom N2600VGA

Fanless, Low Power, DinRail Mount & Supporting Mini-Card for wireless modules Applications: Thin Client、Home Automation、Digital Signage、Transportation、Motion Automation、Vehicle Computer Optional Accessories: FX5311K1 - VESA Mount (75 x75 mm Only) FX5321K1 - 2U Rack Mount AK-1006-Half size PCIe Mini Card Adapter Kit FX5407K3 - LCD VESA Mount Kit Function Items - Specifications CPU Board - Atom N2600 + NM10 Processor - Atom N2600 1.6GHz DRAM - 2GB DDR3 DRAM Socket - 204-Pin SoDIMM *1 (DDR3, 2GB Max) I/O Connector - KB/Mouse - - Serial - RS232/422/485 *1、RS232/422/485/CANBUS*1 Parallel - - USB - 4 (2.0) LAN - 2 (Giga LAN) Display - VGA Dual Display - - Audio - Yes GPIO - 2 In、2 Out BUS I/F - PCIe Mini-Card Slot *1 Storage Bay - CFast Socket - Yes SD Slot - Yes HDD Space - 2.5" *1 (SATA) Power Reguired - Input Voltage - DC 9~32V Rated Current - 35VA Max Operation System - Windows XPe / 7, and Linux Operation Temperature - 0℃ to 50℃ (32℉ to 122℉) Compliances - CE / FCC / RoHS Dimension (W x D x H) - 50 x 102 x 145 mm
