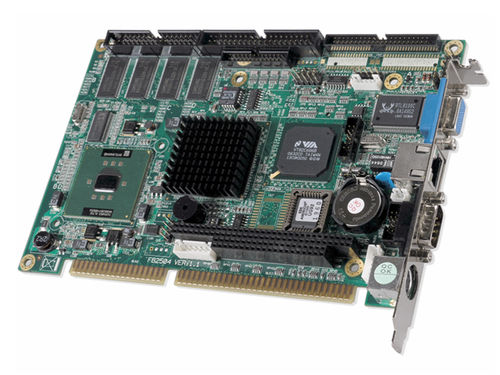

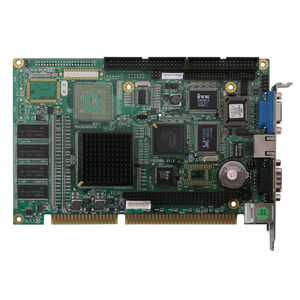

ISA CPU board FB2504

Intel® Celeron®

Special Features: Fanless & Low Power Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - Intel ULV Celeron Operating Freq. (Hz) - 400MHz Chipset - VIA VT8601T + VT686B BUS I/F - ISA、PC/104 L2 Cache - 256KB On-Board DRAM - 32MB DRAM Socket - 144-Pin SoDIMM *1 (SDRAM, 512MB Max) VGA Chipset - VT8601T VRAM - UMA 8MB Max Display - VGA Dual Display - - Audio - Yes (Option) Serial Port - RS232 *1、 RS232/422/485 *1 Parallel Port - Yes FDC/IDE - Yes / Yes (PATA) KB/Mouse - Yes LAN - 1 (10/100 Base-T) USB - 2 (1.1) GPIO - 2 In、2 Out WDT / HWM - Yes / Yes Flash/Memory Socket - CF Socket *1 BIOS - AMI Power Required - +5V only, 13VA Max Operation System - Windows 98 / NT/ 2K / XP / XPe, and Linux Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 185 x 122 mm
