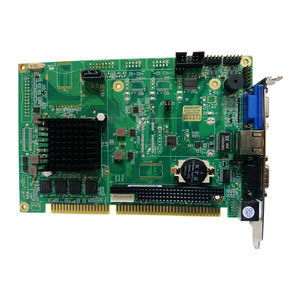

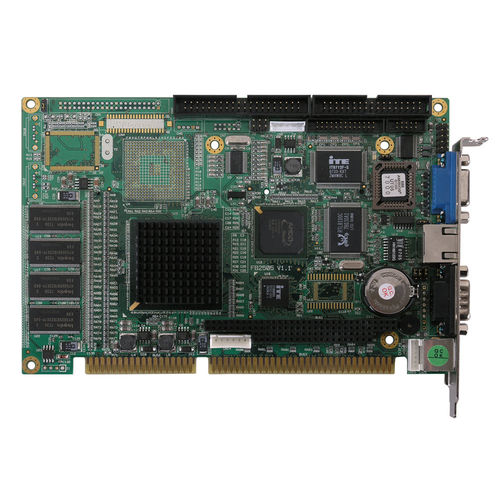

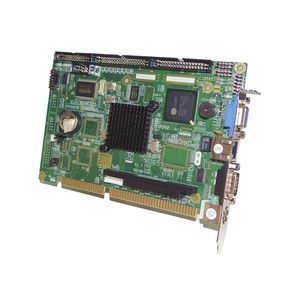

ISA CPU board FB2505

AMD

Special Features: Fanless & Low Power Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - AMD Geode LX-800 Operating Freq. (Hz) - 500MHz Chipset - AMD Geode LX-800 + CS5536 BUS I/F - ISA、PC/104 L2 Cache - 128KB On-Board DRAM - 128MB DRAM Socket - 200-Pin SoDIMM *1 (DDR, 1GB Max) VGA Chipset - AMD Geode LX-800 VRAM - UMA 254MB Max Display - VGA Dual Display - - Audio - - Serial Port - RS232 *1、RS232/422/485 *1 Parallel Port - Yes FDC/IDE - Yes / Yes (PATA) KB/Mouse - Yes LAN - 1 (10/100 Base-T) USB - 2 (2.0) GPIO - 2 In、2 Out WDT / HWM - Yes / Yes Flash/Memory Socket - CF Socket *1 BIOS - AMI Power Required - +5V only, 6.5VA Max Operation System - Windows 2K / XP / XPe / CE, and Linux Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 185 x 122 mm
