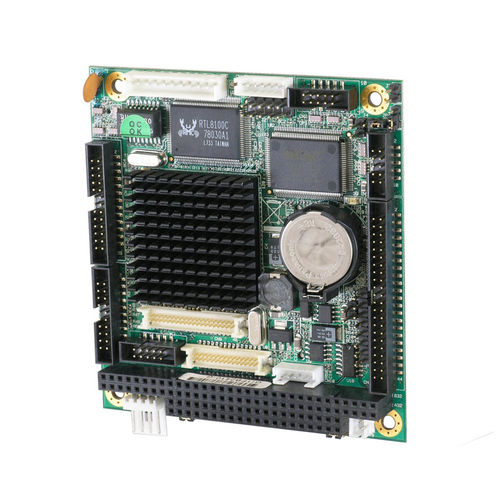

PC/104-plus CPU board FB2410A

other Intel®RS-232

Special Features: Fanless & Low Power Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - STPC ATLAS Operating Freq. (Hz) - 133MHz Chipset - STPC ATLAS BUS I/F - PC/104 L2 Cache - - On-Board DRAM - - DRAM Socket - 144-Pin SoDIMM *1 (SDRAM, 128MB Max) VGA Chipset - STPC ATLAS VRAM - UMA 4MB Max Display - VGA、LVDS/LCD (Option) Dual Display - - Audio - - Serial Port - RS232 *1、RS232/422/485 *1 Parallel Port - Yes FDC / IDE - Yes / Yes (PATA) KB / Mouse - Yes LAN - 1 (10/100 Base-T) USB - 2 (1.1) GPIO - - WDT / HWM - Yes / No Flash/Memory Socket - CF Socket *1 BIOS - AMI Power Required - +5V Only, 7.5VA Max Operation System - Windows 98 Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 90.2 x 95.9 mm
