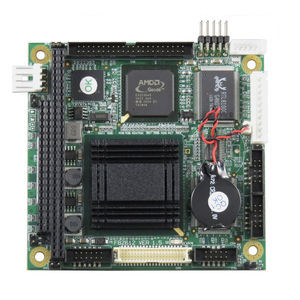

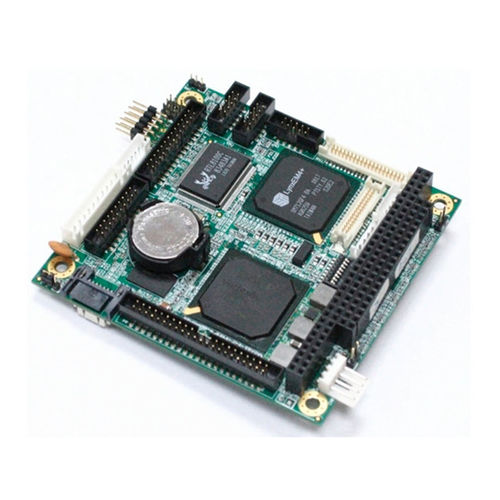

PC/104-plus CPU board FB2412

DM&P Vortex86DX

Special Features: Fanless, Low Power & Supporting Dual Display Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - Vortex86DX Operating Freq. (Hz) - 800MHz Chipset - DMP Vortex86DX BUS I/F - PC/104 L2 Cache - 256KB On-Board DRAM - 128MB DDR2 DRAM Socket - - VGA Chipset - SMI712 VRAM - 4MB Display - VGA、LCD/LVDS (Option) Dual Display - - Audio - - Serial Port - RS232 *1、RS232/485 *1 Parallel Port - - FDC / IDE - No / Yes (PATA) KB / Mouse - Yes LAN - 1 (10/100 Base-T) USB - 2 (2.0) GPIO - 2 In、2 Out WDT / HWM - Yes / No Flash/Memory Socket - CF Socket *1 BIOS - AMI Power Required - +5V only, 15VA Max Operation System - Windows 2K / XP / XPe / CE, and Linux Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 90.2 x 95.9 mm
