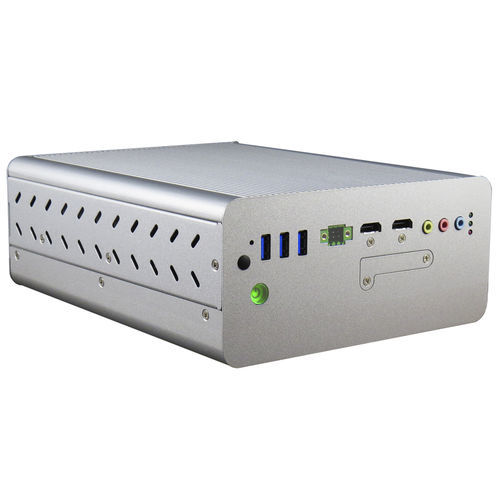

Box PC FX5639

Intel® Braswell N3160DDR3L SODIMMUSB 2.0

Fanless, Expansion BUS, Multi-LAN & Supporting Mini-Card for wireless modules Applications: Motion Automation、Digital Signage、Gaming、Communications、Network Monitoring Optional Accessories: FX5636K1-Wall Mount Kit AK-1006-Half size PCIe Mini Card Adapter Kit One Serial and Parallel Port interface cable with bracket Two Serial Port interface cable with bracket FB4705 – 1 PCI Slot Riser Card FB4744 – 1 PCIe Slot Riser Card Function Items - Specifications CPU Board - Intel Braswell N3160 Processor - Atom Braswell N3160 1.6G (Burst Freq. 2.24Ghz) DRAM - 4GB DDR3L DRAM Socket - 204-Pin SoDIMM *2 (DDR3L, 8GB Max) I/O Connector - KB/Mouse - Option Serial - RS232*2、RS232/422/485 *2 Parallel - Option USB - 3 (3.0)、 4 (2.0) LAN - 2 (Giga LAN) Display - VGA、DP、HD Dual Display - Yes Audio - Yes GPIO - 2 In、2 Out Mini-Card - 1 BUS I/F - PCI or PCIe Slot *1 Storage Bay - CFast Socket - Yes SD Socket - Yes HDD Space - 2.5" *1 (SATA) Power Reguired - Input Voltage - DC 12~24V Rated Current - 65VA Max Operation System - Windows 7/ 8/ 8.1 (32/64), WIN10 IoT and Linux Operation Temperature - -20°C to 55°C (-4℉ to 131℉) Compliances - CE / FCC / RoHS Dimension (W x D x H) - 190 x 240 x 82 mm
