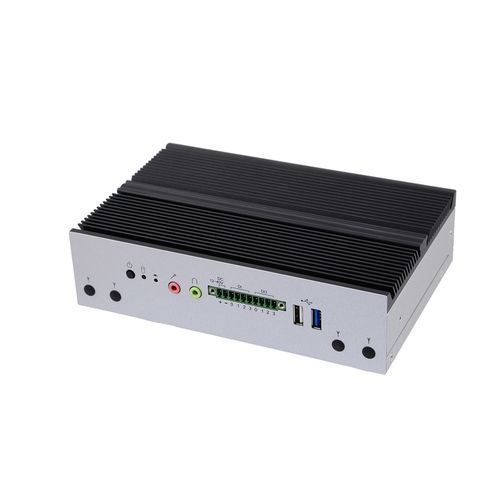

Box PC FX5409

DIN railIntel® Celeron® J3455Intel® Apollo Lake

Fanless, Low Power, Multi-LAN & Supporting Mini-Card for wireless modules Applications: Home Automation、Digital Signage、Transportation、Motion Automation、Vehicle Computer Optional Accessories: FX5403K1 - Rack Mount Kit FX5504K1 - Panel VESA Mount Kit FX5407K1 - Well Mount Kit AK1010 - Din Rail Mount Kit AK-1006-Half size PCIe Mini Card Adapter Kit Function Items - Specifications CPU Board - Intel Apollo Lake J3455 Processor - Intel Celeron J3455 1.5G (Burst Freq. 2.3Ghz) DRAM - 4GB DDR3L DRAM Socket - 204-Pin SoDIMM *2 (DDR3L, 8GB Max) I/O Connector - KB/Mouse - - Serial - RS232 *2、RS232/422/485*2 Parallel - - USB - 1 (2.0)、5 (3.0) LAN - 2 (Giga LAN) Display - VGA、HD Dual Display - Yes Audio - Yes GPIO - 4 In、4 Out Mini-Card/SIM Card - 2 (1 for m-SATA module) / 1 Storage Bay - CFast Socket - - SD Socket - - HDD Space - 2.5" *1 (SATA) Power Reguired - Input Voltage - DC 12~24V Rated Current - 55VA Max Operation System - WIN10 IoT (X64) and Linux Operation Temperature - -20°C to 60°C (-4℉ to 140℉) Compliances - CE / FCC / RoHS Dimension (W x D x H) - 200 x 130 x 52 mm
