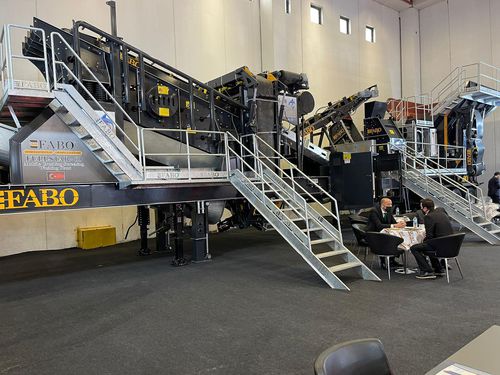

Impact crushing and screening plant FULLSTAR-60

mobileprimarytertiary

*All of our products are made with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO FULLSTAR-60 is a mobile type plant which perform Crushing, Washing And Screening operations at the same time. This type of plant is very efficient as it is constructed on a single chassis, which reduces both plant operation area and manufacture cost. TECHNICAL SPECIFICATIONS: - Bunker: 15 m3 - Plant Dimensions: 21000x4650x4650 mm - Production Capacity: 60-100 Tons Per Hour - 1st Crusher: Primary Jaw Crusher – 600x400mm - 2nd Crusher: Tertiary Impact Crusher – 1200x650 mm - Maximum Feeding Size: 380 mm - Vibrating Screen Size and Deck: 1300x4000 mm (3 decks) ¬- Screw Washer Size: 500x5000 mm (Single Helix) - Total Motor Power: 232 Kw - Generator (optional): 250 kvA FULLSTAR-60 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder(Bypass) • - Primary Jaw Crusher • - Tertiary Impact Crusher • - High Stroke Type Vibrating Screen • - Screw Sand Washer (Single Helix) • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
