Mobile crushing and screening plant MEY-1645

sand production

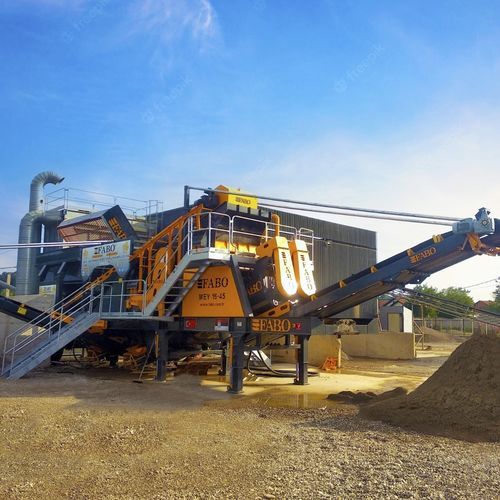

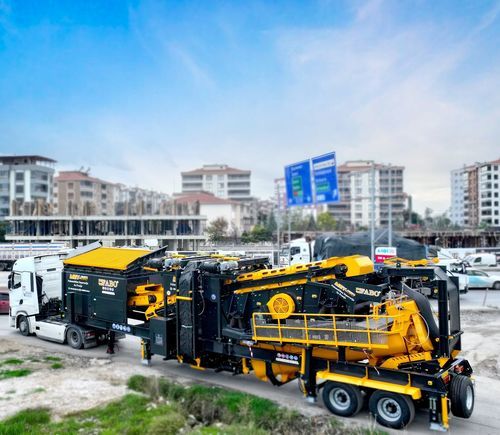

*All of our products are made with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO MEY Series mobile sand screening and washing plant is an ideal solutions for the classifying and washing of materials which was provided as pre-crushed. Most important advantage of plant is having all equipment on only a single chassis. Transportation can be done by only one truck. TECHNICAL SPECIFICATIONS: - Hopper: 8 m3 - Plant Dimensions: 13500x4500x3600 mm - Production Capacity: 120-200 Tons Per Hour - Screw Washer Size: 600x6000 mm Double Helix - Vibrating Screen and Deck: 1600x4500 (4 decks) - Total Motor Power: 68 Kw - Generator (optional): 130 kvA MEY-1645 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Screen with Washing Nozzles • - Double Helix Screw Washer • - Folding type feeding and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
