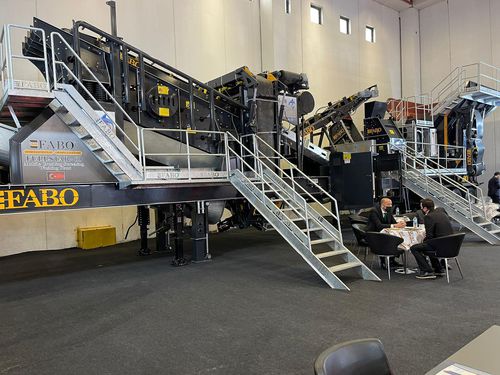

Jaw crushing and screening plant FULLSTAR-60
mobileprimarytertiary

jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
Add to favorites
Compare this product


Characteristics

Technology
jaw
Mobility
mobile
Other characteristics
primary, tertiary
Capacity

Max.: 100 t/h
(61.2 lb/s)

Min.: 60 t/h
(36.7 lb/s)

Motor power

232 kW
(315.43 hp)

Description

*All of our products are made with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO FULLSTAR-60 is a mobile type plant which perform Crushing, Washing And Screening operations at the same time. This type of plant is very efficient as it is constructed on a single chassis, which reduces both plant operation area and manufacture cost. TECHNICAL SPECIFICATIONS: - Bunker: 15 m3 - Plant Dimensions: 21000x4650x4650 mm - Production Capacity: 60-100 Tons Per Hour - 1st Crusher: Primary Jaw Crusher – 600x400mm - 2nd Crusher: Tertiary Impact Crusher – 1200x650 mm - Maximum Feeding Size: 380 mm - Vibrating Screen Size and Deck: 1300x4000 mm (3 decks) ¬- Screw Washer Size: 500x5000 mm (Single Helix) - Total Motor Power: 232 Kw - Generator (optional): 250 kvA FULLSTAR-60 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder(Bypass) • - Primary Jaw Crusher • - Tertiary Impact Crusher • - High Stroke Type Vibrating Screen • - Screw Sand Washer (Single Helix) • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
