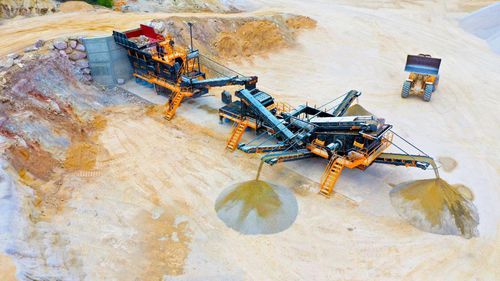

Jaw crushing and screening plant MCK-110
mobilesecondaryfor hardstone

jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
jaw crushing and screening plant
Add to favorites
Compare this product


Characteristics

Technology
jaw
Mobility
mobile
Other characteristics
secondary, for hardstone
Capacity

Max.: 300 t/h
(183.7 lb/s)

Min.: 180 t/h
(110.2 lb/s)

Motor power

500 kW
(679.81 hp)

Description

*All of our products are made with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO MCK-110 is the biggest model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-110 includes two stages of crushing process which is made by primary jaw crusher and Secondary impact crusher. TECHNICAL SPECIFICATIONS: - Bunker: 35 m3 - Plant Dimensions (1st chassis): 13000x4700x4400 mm - Second chassis: 17500x47000x4600 mm - Production Capacity: 180-300 Tons Per Hour - 1st Crusher: Jaw Crusher – 1100x850 mm - 2nd Crusher: Secondary Impact Crusher – 1120x1500 mm - Maximum Feeding Size: 800 mm - Vibrating Screen Size and Deck: 2200x5000mm 3-4 decks - Total Motor Power: 500 Kw - Generator (optional): 660 kvA MCK-110 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder (bypass) • - Primary Jaw Crusher • - Secondary Impact Crusher • - High Stroke Type Vibrating Screen • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
