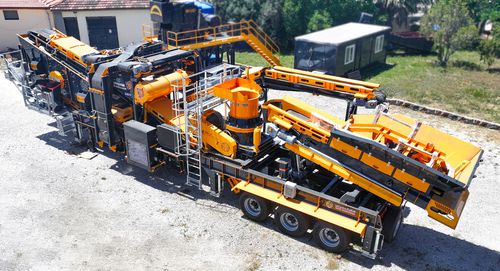

Jaw crushing and screening plant MCK-95

mobileprimarysecondary

*All of our products are made with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO MCK-95 is a middle model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-95 includes two stages of crushing process which is made by primary jaw crusher and cone crusher. TECHNICAL SPECIFICATIONS: - Bunker: 20 m3 - Plant Dimensions (1st chassis): 11500x4600x4200 mm - Second chassis: 15500x4650x4400 mm - Production Capacity: 100-180 Tons Per Hour - 1st Crusher: Jaw Crusher – 900x650 mm - 2nd Crusher: Secondary Cone Crusher – FABO CC 200 - Maximum Feeding Size: 600 mm - Vibrating Screen Size and Deck: 1700x4500mm 3-4 decks - Total Motor Power: 315 Kw - Generator (optional): 400 kvA MCK-95 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder (bypass) • - Primary Jaw Crusher • - Cone Crusher • - High Stroke Type Vibrating Screen • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
