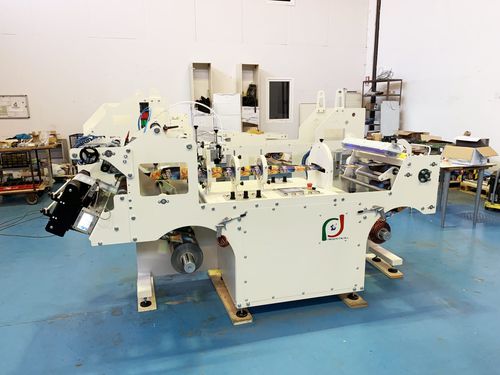

The Shrink Sleeve Seaming Machine converts a flat film reel into a reel of seamed film.
By using another type of machine, the reel of seamed film is cut into pieces.
The result of this process are the so-called shrink sleeves labels that once placed to the final product, conform to the shape of the container.
VERSION: BASIC
Main features:
• modular machine, consisting of more units that can be modified (ex. by replacing the single-shafted rewinder with an automatic turret rewinder)
• single-shafted rewinder and unwinder
• semi-automatic functioning
• Max. speed: 250 mt/min
● adjustable forming unit
● highest lay flat tolerance stability on the market without any additional device
● seam on the edge of the label
● automatic adjustment of the solvent flow to the machine speed
● touch screen machine control interface
Options:
● Additional quality control devices
● Longitudinal perforation
● Tear tape applicator
● Automatic film alignment (web-guide)
● Hotmelt application
MATERIALS :
Shrinkable film in PET, PVC, OPS, PLA from 28 up to 100µm
