Heat detector TM 3/9 plus
sparkthermalprocess

Heat detector - TM 3/9 plus - Fagus-GreCon - spark / thermal / process
Heat detector - TM 3/9 plus - Fagus-GreCon - spark / thermal / process
Heat detector - TM 3/9 plus - Fagus-GreCon - spark / thermal / process - image - 2
Add to favorites
Compare this product


Characteristics

Detected entity
heat, spark
Technology
thermal
Application
monitoring, process, for hazardous areas
Other characteristics
real-time

Description

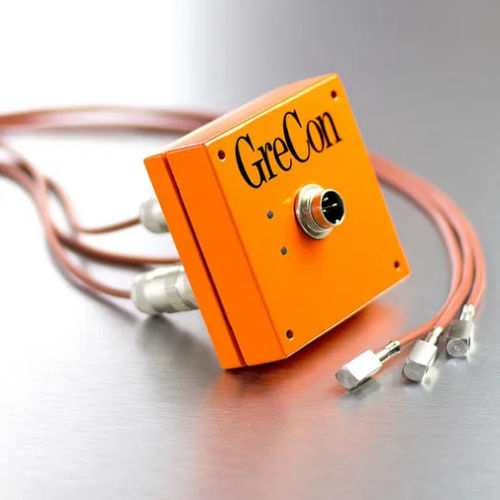

The heat detector TM 3/9 plus is a sensor for the simultaneous detection of temperatures in a maximum of three different areas. The temperature alarm threshold is not a fixed value and can be set in a wide range and may be configured using the GreCon Configurator tool. If the temperature at the measuring point exceeds the configured threshold temperature, then an alarm signal is sent to the control console and this signal is active until the temperature falls below the threshold value. The detector can be connected to every GreCon control console using a standard three core cable. A range of flexible mounting adapter options exist to suit any environment. The control console interfaces with the detector for monitoring of ignition sources within the process, configuration of detection parameters and automated check of the detector’s correct function. Key benefits Individually configurable trigger thresholds for pre-alarm and main alarm Individual control of individual relay outputs Graphical monitoring of the temperature evolution for each probe with GreCon TOUCH control console. Simultaneous temperature monitoring at three different points with eyelet or screw PT1000 probes. Real-time detector status via LEDs. Intelligent detector with extended internal monitoring. Technical specification Summary Temperature monitoring by means of three contact temperature probes to monitor facilities for mechanical malfunctions. Two configurable alarm thresholds. Supply voltage: 13 V to 30 V DC Current drawn: min. 3 mA to max. 30 mA Temperature switching points: +60 °C to max. +200 °C Ambient temperature range: ex-free zone -40 °C to +85 °C, ex-zone -20 °C to +60 °C
