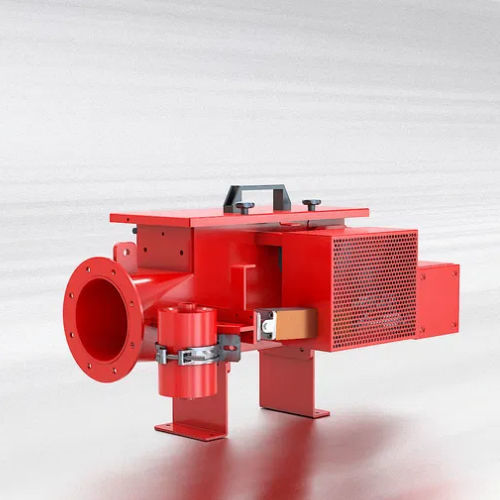

Fire-rated shutter

steel

The fire trap is an additional element of the GreCon Spark Extinguishing System. In case of an alarm, the fire trap closes a transport duct mechanically. Specifications Area of application: negative and positive pressure ducts, suitable for corrosive media and for use in the food industry Material: steel, stainless steel on request Release: electropneumatially via control console Drive: pneumatic drive by air cylinder, incl. protective grating Closing time: 0.1 to 0.4 s, depending on nominal width Compressed air supply: 4 to 6 bar, to be provided by the customer Control: automatic release via control console, closure of the transport system upon release of the fire trap
