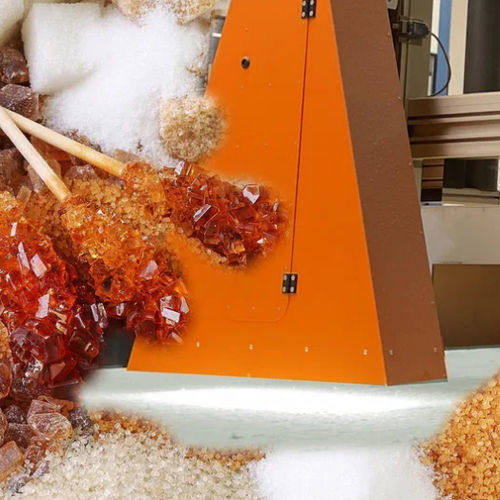

Camera inspection system SU­GAR­VIEW

non-contactautomaticsurface

The GreCon SUGARVIEW inspection system checks bulk goods for unwanted components. In the sugar industry in particular, deposits detached from the production equipment can get into the product flow. These are reliably detected by SUGARVIEW. Tolerance monitoring, logs and statistics allow detailed conclusions to be drawn about the upstream production process. Advantages at a glance Non-contact measurement Continuous measurement Objective quality inspection Quality assurance and reduction of customer complaints Measuring Method SUGARVIEW is preferably used above the product flow on conveyor belts. The bulk material is inspected over the entire surface by a camera system. An automatic height adjustment of the camera and lighting unit with light control creates constant measuring conditions, independent of the ambient conditions. The foreign objects are automatically detected and classified by three image processing steps. The process takes place continuously during ongoing production, so that a representative statement about the product quality or the contamination is possible in real time. This technology makes it possible to objectively assess quality for the first time. Technical data Supply Supply voltage: 1 x 230 V Frequency: 50 to 60 Hz Mains type: 3 x phase/neutral conductor/protective conductor Power consumption: 2 kw Place of installation Places of installation (other places of installation on request): above conveyor belt Ambient temperature: 5 to 45 °C Relative humidity: non-condensing Measured material Type of material: Sugar (other bulk materials on request) Transport speed: max. 120 m/min. Sensor Number: 1 (inspection width 400 mm)
