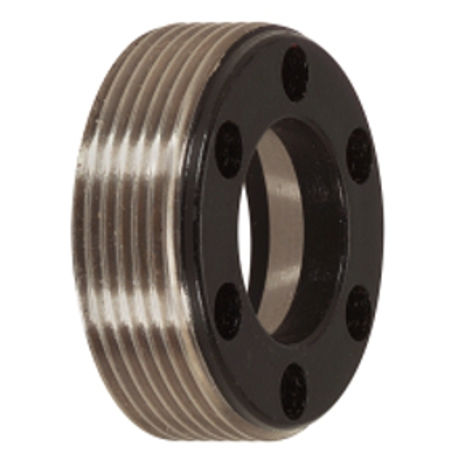

Floating nut STMA

threadedfor collets

Concentricity and repeatability extremely high due to the fact that the thread and taper are ground in one operation Application for all collet chucks, collet holders and acceptances DIN 6499/ISO 15488 (ER/ESX) Remark other executions, e.g. Clamping Nuts with External Thread (also for Sealing Discs HPDI), are available on request Execution with external thread case-hardened (660 HV10) and burnished Application in recessed collet mounts, such as driven tools, floating bushes and all space saving constructions Special features all collets with outside form DIN 6499/ISO 15488 can be clamped Remark not interchangeable with clamping nuts DIN 6499/ISO 15488 (external thread)
