Centrifugal pump BF
waterelectricstationary

Centrifugal pump - BF  - Fairbanks Nijhuis - water / electric / stationary
Centrifugal pump - BF  - Fairbanks Nijhuis - water / electric / stationary
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
for control, transport, reverse
Other characteristics
double, large, flow, in-line, dry, bi-directional, integrated
Flow

Max.: 3,000 m³/h
(105,944.00016 ft³/h)

Min.: 1,000 m³/h
(35,314.66672 ft³/h)

Head

Max.: 30 m
(98'05" )

Min.: 0 m
(0'00" )

Description

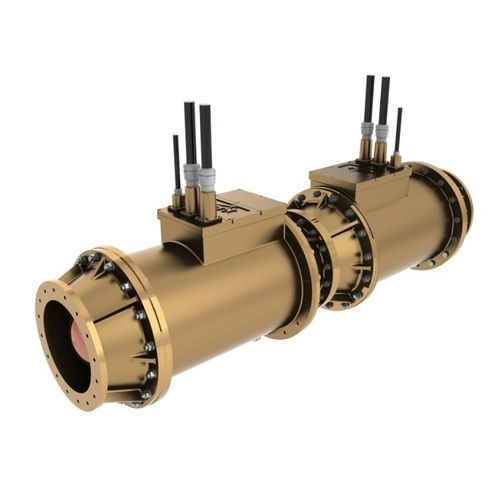

Pentair Fairbanks Nijhuis BF Series BiFlow Pumps The Fairbanks Nijhuis BiFlow pump is a bi-directional, in-line ballast / anti-heeling pump. This pump is specially designed for the transport of large amounts of ballast water, where space requirements and piping must be reduced to a minimum to ensure a high system efficiency. The configuration is completely symmetrical, consisting of two counter-rotating impellers with variable speed. The driver is submerged and completely integrated with the pump. This configuration ensures a high efficiency and controlled flow in both directions to opposing ballast tanks. The BiFlow can be installed in the double bottom section of the ship, submerged or dry. Bi-directional operation In-line assembly Large performance envelope High overall efficiency Symmetrical forward and reverse performance Minimum of space and piping Fast control response Low noise and vibration levels
